Dc electronic load is programmable power absorption function equipment, mainly used for THE detection of DC power supply, can also be used in other occasions, such as battery manufacturing and development testing, solid high-power semiconductor components testing, DC motor, DC generator testing, solid motor control testing and so on.

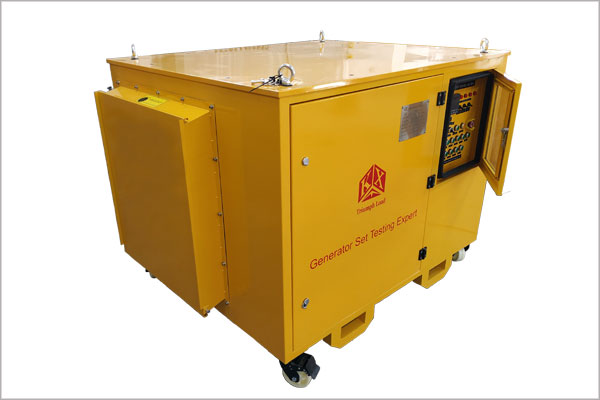

500kw load bank


In general, electronic loads have high output impedance and can quickly change the output voltage and output current. Electronic loads absorb energy and are often referred to as "current absorbers". Generally, electronic loads have rated voltages ranging from W to A few kilowatts, rated currents from A to several hundred A, and rated voltages from A few volts to around 1kV. Electronic load has fixed current (CC), fixed voltage (CV), fixed resistance (CR) mode, can be used for different power parameters measurement; Also has a protection function, is conducive to improve the speed of measurement. Therefore, it is very important to use electronic load and test correctly.

Main features and performance of DC electronic load:

1. Digital operation and control;

2. Backlit LCD display, display rich information;

3. Multiple machines can be used to expand the load capacity;

4. With short circuit test, dynamic test and other functions;

5. Protection function: over voltage, over current, over power, over heat, polarity reverse connection;

6.10 group parameters memory and call, with automatic call function upon startup;

7. User-friendly multi-level menu setting, easy and intuitive operation.

Dc electronic load is a kind of electronic circuit equipment that absorbs DC energy and dissipates, stores or feeds the absorbed DC energy to the power grid. The current absorbed by the device can be adjusted or set, and its port input characteristics conform to Ohm's law.
