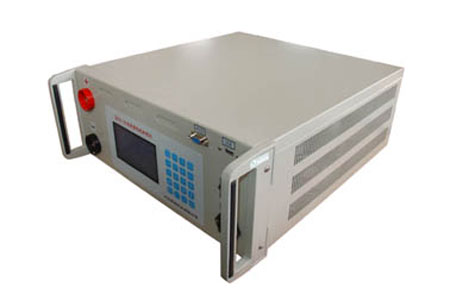

    Intelligent Battery Discharger
    Introduction
    Intelligent charger/discharger adopts modern power electronic technology and intelligent micro-processing technology, cooperate with the computer data processing software, intelligent control battery charge/discharge process, real-time monitoring, activating the battery pack. It effectively reduce the maintenance work strength, improve the efficiency of maintenance test, reduce the enterprise cost, provide comprehensive scientific testing means for the battery and UPS power supply maintenance.

    Main Features
    1.Display mode: LCD display, real-time display all testing data: voltage、current、capacity、discharge time and inner temperature of machine.
    2.Control mode: SCM control, setting by keyboard: whole battery protection voltage、discharge current、discharge capacity、discharge time etc.
    3.Autostop function: It will auto stop under any of following reach the setting value: discharge time、capacity、protection voltage.
    4.Protection function: When internal overheat、positive and negative is reverse、connection wire of the battery group is disconnected, it will unload and give a alarm.
    5.Real-time monitoring function: Real-time display and control all setting parameters (voltagepcurrentpcapacitypdischarge time etc).
    6. Record query function: It can reserve 8 group discharge data, user can query according to requirement.
    7.Data transfer function: It equips with USB and RS232 interface, can use USB transfer the data or connect it to PC directly.
    8.Data processing function: It equips with data processing software, can analysis and generate various curve chart automatically and support to print.
    9.Computer remote control function: Can setting and revise discharge parameter by computer, it also can control the start and stop of the discharge.
    10.Parallel operation function: It can parallel operation with above two sets of same models, each unit operation independently.
    11.Calibration correction function: It can calibrate the total voltage and current of the battery.
    12.Power consumption components: It adopts special alloy resistor, produce with patent technology, high power density, no naked flight, safe and reliable, long service live.
    13.Integrated design: it adopts integrated design for the control circuit and power consumption components, with compact size, convenient to carry and it adopts forced air cooling.

    Some regular models

    Product type Automatic Charger Discharger Intelligent Battery Activator Intelligent Battery Charger Discharger
    Product series C/F series ZC/F series ZNC/F series
    Model C/F60 C/F12-100 C/F30 ZC/F12-100 ZC/F2-300 ZNC/F48-60 ZNC/F220-40
    Battery nominal voltage DC 2V/6V/12V/24V/36V/48V 2V/6V/12V/ 12V/24V 2V/6V/12V 2V 48V 220V
    Discharging voltage 0-60V 0-15V 0-30V 0-15V 0-2.5V 0-60V 0-275V
    Discharging  current 1-60A 1-100A 1-30A 1-100A 1-300A 1-60A 1-40A
    Charging voltage 2-60V 2-15V 2-30V 2-15V 2-2.5V 2-60V 12-275V
    Charging current 2-60A 2-100A 2-30A 2-100A 10-300A 2-60A 2-40A
    Charging/discharging time 1minute- 99 hours 59 minutes
    Charging/discharging capacity 1-9999Ah
    Group voltage tolerance  ±1%+2 reading
    Current tolerance ±1%+2 reading
    Working power supply AC220V, 1 phase, 50HZ or AC380V, 3 phase, 50HZ
    Display  Digital LED display, keyboard set LCD display, keyboard set, menu hint,
    Data transfer / RS232 or RS485 & USB
    Insulation Input to casting R2000V R500V R1500V
    Output to casting R2000V R1500V R500V
    MTBF R50000h
    Ambient temperature -10≧ -- +40≧
    Dimension(L*W*H) 426*448*172 340*720*580
    Weight about(KG) 25 15 14 15 20 25 70

    The parameters is only for reference, pls contact supplier for exact information
